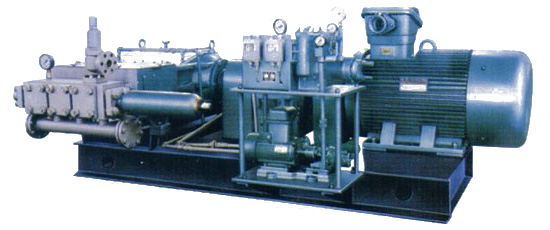

3P130型三柱塞高压泵
3P130型三柱塞高压泵性能参数表 柱塞行程：130mm 泵推力：8000kg
| 柱塞直径(mm) | 125 | 110 | 100 | 88 | 78 | 72 | 70 | 63 | 58 | 55 | 53 | 50 | 43 | 38 | |
| 排出压力(Mpa) | 6 | 8 | 10 | 12.5 | 16 | 18 | 20 | 25 | 28 | 31.5 | 35 | 40 | 50 | 70 | |
| 转速 (n/min) | 流量(L/min) m³/h 功率 (kW) | ||||||||||||||
| 94 | L/min | 423 | 327 | 270 | 209 | 162 | 138 | 131 | 105 | 89 | 80.1 | 74.3 | 65.4 | 48.4 | 37.8 |
| m³/h | 25.4 | 19.6 | 16.2 | 12.6 | 9.7 | 8.3 | 7.8 | 6.3 | 5.3 | 4.8 | 4.5 | 3.9 | 2.9 | 2.3 | |
| kW | 46.0 | 47.5 | 49.1 | 47.5 | 47.3 | 45.3 | 47.6 | 47.6 | 45.2 | 45.8 | 47.2 | 47.5 | 43.9 | 48.0 | |
| 107 | L/min | 481 | 372 | 308 | 238 | 185 | 158 | 149 | 119 | 101 | 91.1 | 84.6 | 74.5 | 55.1 | 43.0 |
| m³/h | 28.8 | 22.3 | 18.5 | 14.3 | 11.1 | 9.5 | 8.9 | 7.2 | 6.1 | 5.4 | 5.1 | 4.5 | 3.3 | 2.6 | |
| kW | 52.4 | 54.1 | 55.9 | 54.1 | 53.8 | 51.6 | 54.2 | 54.2 | 51.5 | 52.1 | 53.7 | 54.1 | 50.0 | 54.7 | |
| 120 | L/min | 539 | 418 | 345 | 267 | 208 | 177 | 167 | 134 | 114 | 102 | 95.0 | 83.6 | 61.8 | 48.2 |
| m³/h | 32.3 | 25.1 | 20.7 | 16.0 | 12.5 | 10.6 | 10.0 | 8.0 | 6.8 | 6.1 | 5.7 | 5.0 | 3.7 | 2.9 | |
| kW | 58.8 | 60.7 | 62.7 | 60.7 | 60.4 | 57.9 | 60.8 | 60.9 | 57.8 | 58.5 | 60.3 | 60.7 | 56.1 | 61.3 | |
| 134 | L/min | 602 | 466 | 385 | 298 | 232 | 198 | 187 | 149 | 127 | 114 | 106 | 93.3 | 69 | 53.9 |
| m³/h | 36.1 | 28 | 23.1 | 17.9 | 13.9 | 11.8 | 11.2 | 9.0 | 7.6 | 6.8 | 6.3 | 5.6 | 4.1 | 3.2 | |
| kW | 65.6 | 67.8 | 70.0 | 67.8 | 67.4 | 64.6 | 67.9 | 67.9 | 64.5 | 65.3 | 67.3 | 67.8 | 62.6 | 68.5 | |
| 150 | L/min | 674 | 522 | 43 | 334 | 259 | 221 | 20.9 | 167 | 142 | 128 | 118 | 104 | 77.3 | 60.3 |
| m³/h | 40.5 | 31.3 | 25.9 | 20.1 | 15.6 | 13.3 | 12.5 | 10.0 | 8.5 | 7.6 | 7.1 | 6.3 | 4.6 | 3.6 | |
| kW | 73.4 | 75.8 | 78.4 | 75.8 | 75.4 | 72.3 | 75.9 | 76.1 | 72.2 | 73.0 | 75.4 | 75.5 | 70.1 | 76.7 | |
| 167 | L/min | 751 | 581 | 480 | 372 | 289 | 246 | 233 | 186 | 158 | 142 | 134 | 116 | 86 | 67.2 |
| m³/h | 45.1 | 34.9 | 28.8 | 22.3 | 17.4 | 14.8 | 14.0 | 1 1.2 | 9.5 | 8.5 | 8.0 | 7.0 | 5.1 | 4.0 | |
| kW | 81.8 | 34.5 | 87.3 | 84.5 | 84.0 | 80.5 | 84.6 | 84.7 | 80.4 | 81.4 | 84.8 | 84.5 | 78.1 | 86.0 | |
| 185 | L/min | 831 | 644 | 532 | 412 | 320 | 273 | 258 | 206 | 175 | 157 | 146 | 129 | 95.3 | 74.4 |
| m³/h | 49.9 | 38.6 | 31.9 | 24.7 | 19.2 | 16.4 | 15.5 | 12.4 | 105 | 9.4 | 8.8 | 7.7 | 5.7 | 4.5 | |
| kW | 90.6 | 93.5 | 96.6 | 93.5 | 93.1 | 89.2 | 93.7 | 93.8 | 89.1 | 90.1 | 93.0 | 93.6 | 86.5 | 94.6 | |
| 211 | L/min | 949 | 734 | 607 | 470 | 365 | 311 | 294 | 236 | 200 | 179 | 167 | 147 | 108 | 84.8 |
| m³/h | 56.9 | 44.1 | 36.4 | 28.2 | 21.9 | 18.7 | 17.6 | 14.2 | 12.0 | 10.8 | 10.0 | 8.8 | 6.5 | 5.1 | |
| kW | 103.3 | 106.7 | 110.2 | 107 | 106 | 102 | 107 | 107 | 102 | 103 | 106 | 107 | 98.6 | 108 | |
| 238 | L/min | 1070 | 828 | 685 | 530 | 412 | 351 | 332 | 266 | 225 | 203 | 188 | 166 | 123 | 95.7 |
| m³/h | 64.2 | 49.7 | 41.1 | 31.8 | 24.7 | 21.1 | 19.9 | 15.9 | 13.5 | 12.2 | 11.3 | 9.9 | 7.4 | 57 | |
| kW | 116.6 | 120 | 124 | 120 | 119 | 115 | 120 | 120.7 | 114 | 116 | 119 | 120 | 111 | 121 | |
| 268 | L/min | 1205 | 933 | 771 | 597 | 464 | 464 | 374 | 299.6 | 254 | 228 | 212 | 186 | 138 | 108 |
| m³/h | 72.3 | 56 | 46.2 | 35.8 | 27.8 | 23.7 | 22.4 | 17.9 | 15.2 | 13.7 | 12.7 | 11.2 | 8.3 | 6.5 | |
| kW | 131 | 135 | 140 | 135 | 135 | 135 | 136 | 136 | 129 | 130 | 134 | 135 | 125 | 137 | |
| 300 | L/min | 1349 | 1044 | 863 | 668 | 519 | 519 | 418 | 335 | 284 | 255 | 237 | 209 | 154 | 121 |
| m³/h | 80.9 | 62.7 | 51.8 | 40.1 | 31.2 | 31.2 | 25.1 | 20.1 | 17 | 15.3 | 14.2 | 12.5 | 9.3 | 7.2 | |
| kW | 147 | 152 | 157 | 152 | 151 | 151 | 152 | 152 | 144 | 146 | 151 | 152 | 140 | 153 | |
| 333 | L/min | 1497 | 1159 | 958 | 742 | 577 | 577 | 464 | 372 | 315 | 283 | 263 | 232 | 171 | 134 |
| m³/h | 89.8 | 69.6 | 57.5 | 44.5 | 34.6 | 34.6 | 27.8 | 22.3 | 18.9 | 17.0 | 15.8 | 13.9 | 10.3 | 8.0 | |
| kW | 163 | 168 | 174 | 168 | 167 | 167 | 168 | 169 | 160 | 162 | 167 | 68 | 156 | 170 | |
注意事项：
1、 当使用环境为24小时连续运转时(如：注水泵、流程泵等)，泵转速应低于250r/min。
2、 当使用环境为间断运转时(如：清洗泵、试压泵等)，泵转速可高一点。
3、 当输送介质液态气体时(如：二氧化碳泵等)，泵转速应不高于110r/min.。
4、 上表所提供的流量为理念流量，实际流量一般为理论流量的92%。
